>> General

Series DRG-01 Control Valves Has Been Developed To Provide A Cost Effective Solution To The “ Final Control Element” Used In Modern Plants.

The Valve Design Combines The Successful High Integrity Features Of The Series DRG-01 With A High Capacity, Economic Design Philosophy As Well As Excellent Control.



>> Performance

- High Cv To Body Size Ratio.

- Streamlined Flow Passages To Optimize Capacity.

- High Cv To Valve Weight Ratio.

- Excellent Flow Control Rangeability.



>> Design Flexibility

- Modular Construction Design Available With A Range Of Different Connections And Styles.

- All Trim Components Removable From The Top For Easy Of Maintenance.

- Wide Range Of Supplementary Noise Control Options.

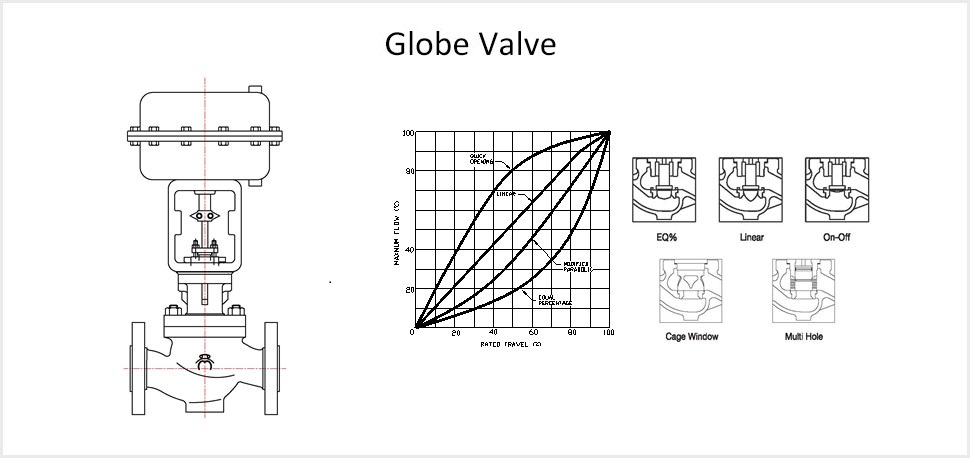

- Inherently Characterized Trim Offered In EQ% Percentage, Linear, Quick Opening.

- Multi Trim Sizes Available.

- Full Range Of Body And Trim Material Options.

- Fully Rationalized And Interchangeable Features.

- Full Range Of Bonnet And Packing Designs To Suit Various Temperatures And Fluids.

>> Specifications

Valve Model Series DRG

Valve Type

S-P Port, C-B Port, Multi Hole, 2-Way, 3-Way

Valve Size 1/2"(15A) to 24" (600A)
Valve Rating

ANSI 150# to 2500#

JIS 10K to 63K

PN 10 to 100

End Connection RF, FF, SW, BW, Screw, RTJ and so on
Body Material

A105, WCB, CF8, CF8M, CF3, CF3M, CD4MCU, CA6NM and so on

SCPH2, SCS13, SCS14, SCS19, SCS16, SCS1, SCS2 and so on

304, 316, 316L, 420J2 and so on

MONEL, HASTELLOY, TITANIUM, ALLOY 20, MORE-1 and so on

+STL, +TCC, +RUBBER, +TFE, +PFA, +CERAMIC and so on

Trim Material

13CR, CF8, CF8M, CF3, CF3M, CD4MCU, CA6NM and so on

SCS13, SCS14, SCS19, SCS16, SCS1, SCS2 and so on

304, 316, 316L, 420J2 and so on

MONEL, HASTELLOY, TITANIUM, ALLOY 20, MORE-1 and so on

+STL, +TCC, +RUBBER, +TFE, +PFA, +CERAMIC and so on

Seat Material

PTFE, RTFE, CTFE, PEEK and so on

13CR, 304, 316, 316L, 420J2 and so on

MONEL, HASTELLOY, TITANIUM, ALLOY 20, MORE-1 and so on

+STL, +TCC, +RUBBER, +TFE, +PFA, +CERAMIC and so on

Rangeability 100:1 to 10:1
Bonnet Type Plain (-17℃ to 230℃)
Extension ( -45℃ to -17℃, over 230℃)
Cryogenic ( -196℃ to -45℃)
Flow Characteristic

Inherent, On-off

Leakage Class Metal Seat Rated ANSI Class IV, V
Soft Seat Rated ANSI Class VI
Actuator Combination Diaphragm Actuator, Piston Cylinder Actuator, Electric Actuator
