>> General

Series DRV-68 Easy V-Ball Valve Is Full Bore, Trunnion, And Stem Ball Type V-Notched Ball Valve, Which Is Exclusively Designed For Excellent Proportional Control As Much As Globe Type Control Valves And Manual Valves.

Series DRV-68 Have Special Shape Of Disc Which Is Suitable For Accurate Throttling Control And On-Off Service Not Only General Fluids But Also Critical Condition In Powders, Slurry, Fly Ash, Pulp, Gummy, Fibrous Material And Other Fluids Having Special Characteristics.




>> Performance

- High Cv Body Size Ratio. (Full Bore)

- Controls Through 90° Rotation.

- High Cv To Valve Weight Ratio Compared Conventional Control Valves.

- Excellent Flow Control Rangeability.

- Easy Maintenance.

- ISO Standard Mounting Hole.

- Direct Mounting Actuator.



>> Design Flexibility

- Swing Through And Tight Shut-Off Seated Trim Designs.

- Full Range Of Body And Trim Material Options, With Available Of Hard Facings.

- Seat Changeability.

- Double-Eccentric Type.

- Self-Centering And Tight Seating.

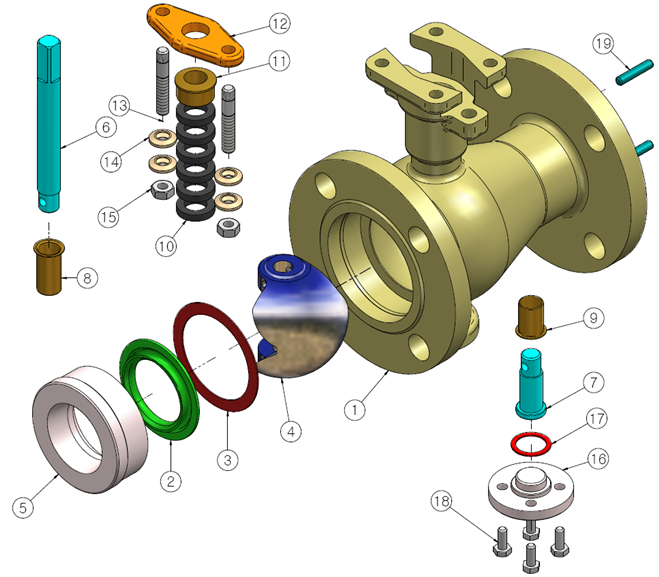

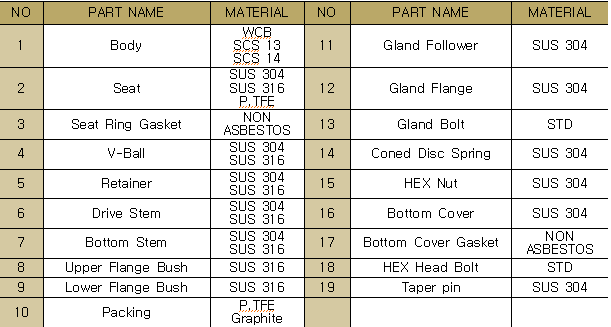

>> Specifications

Valve Model Series DRV
Valve Type Side entry type [68]
Valve Size 1/2"(15A) to 16" (400A)
Valve Rating

ANSI 150# to 2500#

JIS 10K to 63K

PN 10 to 100

End Connection WF, RF, FF, RTJ and so on
Body Material

WCB, CF8, CF8M, CF3, CF3M, CD4MCU, CA6NM and so on

SCPH2, SCS13, SCS14, SCS19, SCS16, SCS1, SCS2 and so on

304, 316, 316L, 420J2 and so on

MONEL, HASTELLOY, TITANIUM, ALLOY 20, MORE-1 and so on

+STL, +TCC, +RUBBER, +TFE, +PFA, +CERAMIC and so on

V-Ball Material

CF8, CF8M, CF3, CF3M, CD4MCU, CA6NM and so on

SCS13, SCS14, SCS19, SCS16, SCS1, SCS2 and so on

304, 316, 316L, 420J2 and so on

MONEL, HASTELLOY, TITANIUM, ALLOY 20, MORE-1 and so on

+STL, +TCC, +RUBBER, +TFE, +PFA, +CERAMIC and so on

Seat Material

PTFE, RTFE, CTFE, PEEK and so on

304, 316, 316L, 420J2 and so on

MONEL, HASTELLOY, TITANIUM, ALLOY 20, MORE-1 and so on

+STL, +TCC, +RUBBER, +TFE, +PFA, +CERAMIC and so on

Bonnet Type Plain (-17℃ to 230℃)
Extension ( -45 ℃ to -17℃, over 230 ℃)
Cryogenic ( -196℃ to -45℃)
Flow Characteristic Approximative, On-off
Leakage Class Metal Seat Rated ANSI Class IV
Soft Seat Rated ANSI Class VI
Actuator Combination Diaphragm Actuator, Spring Return Cylinder, Double Acting Cylinder, Electric Actuator
